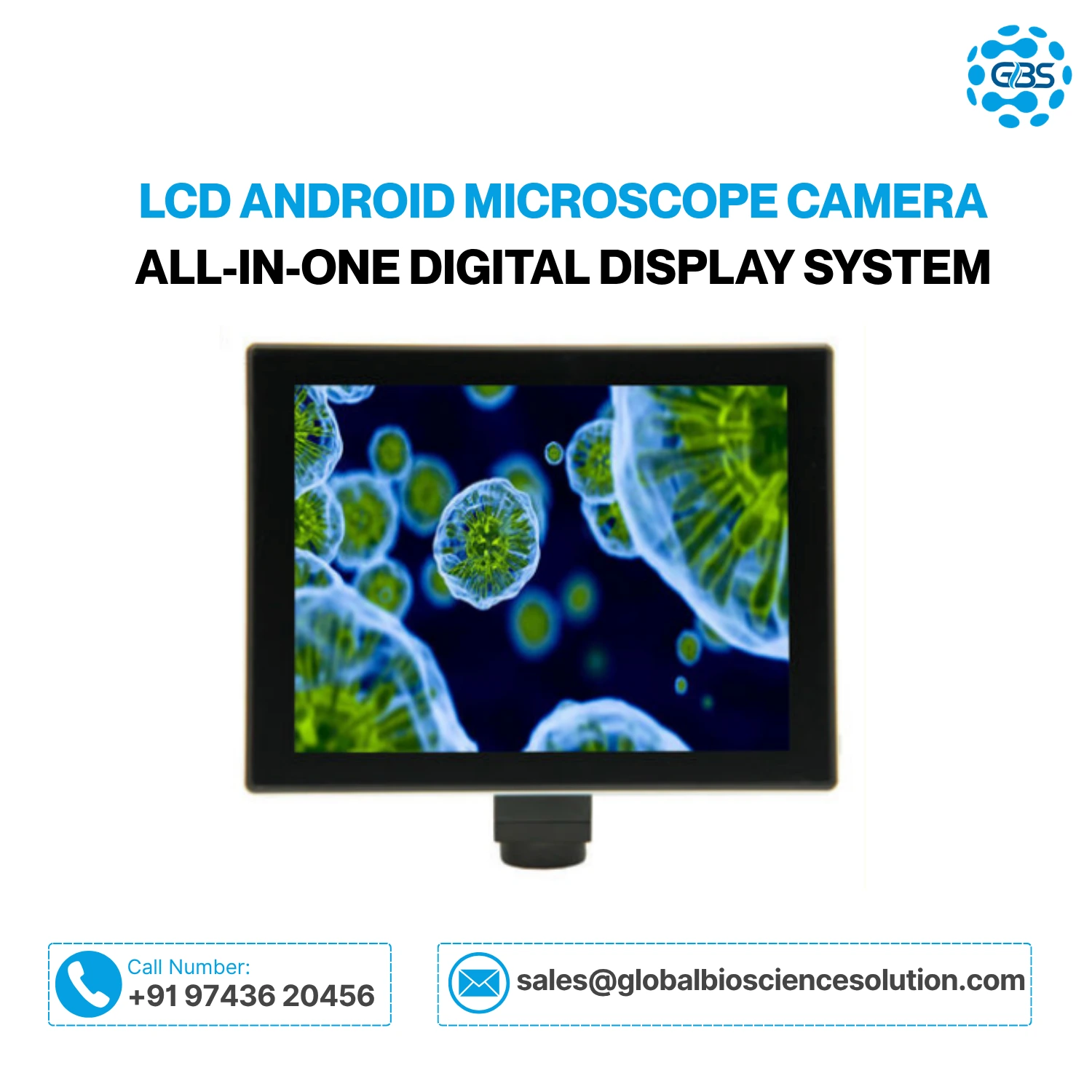

9.7″ LCD Android Microscope Camera All-in-One Digital System
What is the GBS59.3520? The GBS59.3520 is a state-of-the-art 9.7-inch LCD Android Pad Digital Camera designed as a standalone digital display system for microscopy. By replacing traditional eyepieces, this all-in-one microscope camera integrates a 5.0M 1/2.5″ CMOS sensor (2048×1536 resolution) with an Android tablet.
Powered by a 1.8GHz Quad-Core CPU, it offers touch-screen control, built-in S-Eye measuring software, and comprehensive connectivity (WiFi, Bluetooth, HDMI, TF Card). Ideal for laboratories, industrial inspection, and educational institutions looking to streamline their workflow without relying on external computers.
Enhance Your Microscopic Workflow with Generative Tech
The GBS59.3520 Android Microscope Camera represents the next generation of digital microscopy. By replacing traditional eyepieces with a vibrant 9.7″ HD IPS Touch Screen, it enables ergonomic, heads-up viewing. Built on a stable Android platform, it offers standalone operation without needing a separate PC.
Why Choose the GBS59.3520 Over Traditional PC Setups?
Unlike conventional USB microscope cameras that require a dedicated desktop computer, drivers, and complex cabling, the GBS59.3520 is a self-contained unit. The integrated hardware processes 5.0-megapixel images internally, ensuring zero latency and saving crucial bench space in crowded laboratories or manufacturing floors.
All-in-One Hardware Integration
Combines a highly sensitive 5.0 Megapixel 1/2.5″ CMOS camera, a fast RK3288 Quad-Core processor, and a brilliant IPS tablet into one sleek, space-saving unit.

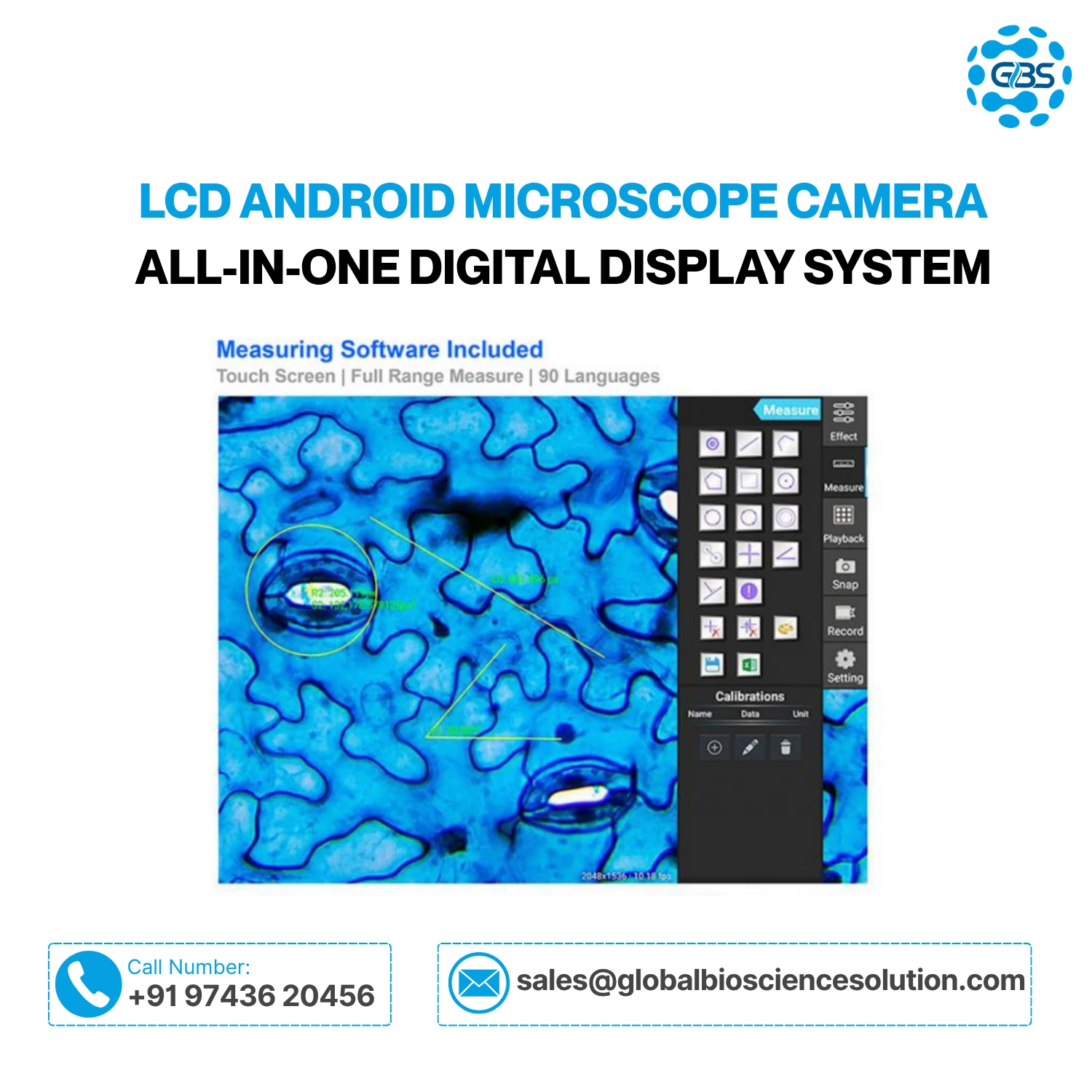

Advanced S-Eye Measuring Software
Pre-installed software allows for comprehensive geometric analysis. Perform full-range measurements including point-to-point, parallel lines, curve lengths, geometric area, and radius calculations. Operates effortlessly via touch or the included USB mouse.
Versatile Connectivity & Data Export
Export data natively via the built-in TF card slot, output uncompressed live video to larger displays using HDMI, or sync data over enterprise networks using WIFI and Bluetooth capabilities.
Industry-Specific Applications
This intelligent microscope camera is designed to meet the rigorous demands of these primary sectors:
Industrial Quality Control (QC)
Ideal for rapid PCB inspection, semiconductor wafer analysis, and microscopic defect documentation.
Educational Environments
Allows an entire classroom to view specimens simultaneously. Excellent for interactive biology and chemistry labs.
Clinical Pathology & Labs
Provides clear, color-accurate digital pathology imaging and instant reporting without neck strain.
Material Science & Metallurgy
Conduct accurate geometric measurement and metallurgical grain structure analysis directly on the screen.
Full Hardware & Software Specifications
In-depth technical breakdown of the GBS59.3520 Display System. This data is structured to provide clear answers for technical SEO queries.
| LCD Screen Panel | 9.7″ HD IPS Touch Screen With Brightness Backlight |
| Operating System | Android 5.1 OS (Standalone PC-Free) |
| CPU Processor | 1.8GHz Four Core RK3288 chipset |
| Onboard Memory | RAM 2GB DDR, ROM 8GB Internal Storage |
| Expandable Storage | TF Card Slot (MicroSD) support |
| Physical Dimensions | Pad: 238 x 182 x 12mm | Camera base: 40 x 39mm |
| Power Supply Requirements | DC 12V/2A Power Adaptor (AC 100~240V, 50/60Hz compatible) |
| Camera Sensor Type | 5.0M 1/2.5″ CMOS Digital Image Sensor |
| Maximum Resolution | 2048 x 1536 pixels @ 15 Frames Per Second (FPS) |
| Pixel Size | 2.2um x 2.2um |
| Photo Capture Format | 5.0M .JPEG format (Supports up to 12.0M interpolated output) |
| Video Capture Format | 1080p HD Video Recording |

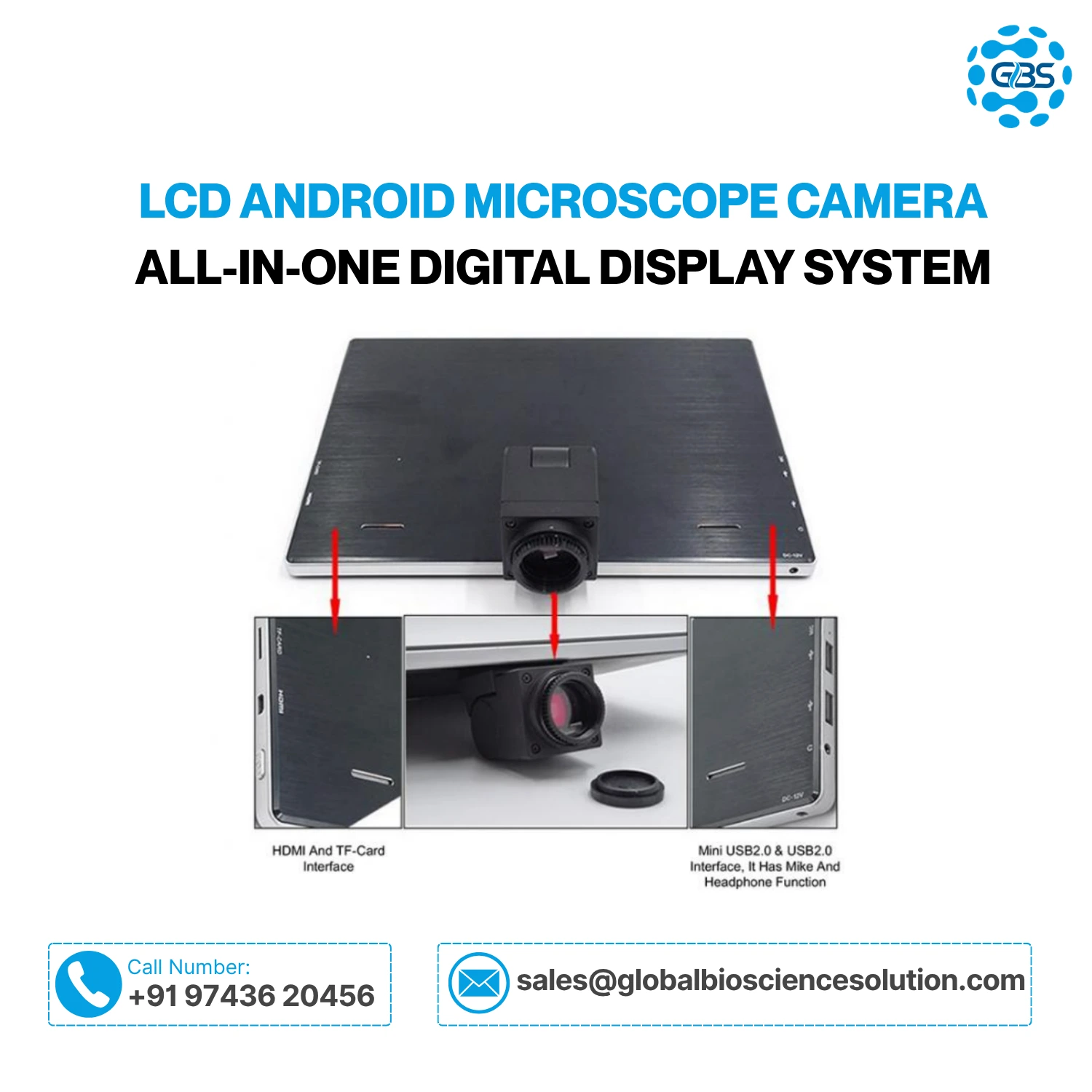

| External Data Output | USB 2.0, HDMI Out, TF Card reader |
| Wireless Protocols | Built-in WIFI & Bluetooth Module |
| USB Interface Ports | Mini USB 2.0 & Standard USB 2.0 (Supports Microphone and Headphone functions) |
| Input Control Methods | Capacitive Touch Screen, USB Mouse, and Keyboard support |
| Localization | Multilingual Support for 90 Languages |
| Annotation Marking Tools | Point, Crosshair, Coordinate Mapping, Text Insertion |
| Linear Measurement | Straight Line, Broken Line, Curve Length, Parallel Line Distance, Point-To-Line Distance |
| Circular Measurement | Distance Between 2 Circle Centers, Radius Fixed Circle, Two-point/Three-point Fixed Circle |
| Geometric Area Calculation | Polygon Area, Square Area, Concentric Circle Area |
Product Manuals & Software Resources
Access comprehensive user manuals for the S-Eye software, calibration guides, and technical specification datasheets.
Frequently Asked Questions
Direct, expert answers to the most common queries surrounding Android microscope cameras and digital display systems.
An Android microscope camera, like the GBS59.3520, is used to instantly convert a traditional optical microscope into a standalone digital imaging system. It allows users to view live samples on a built-in LCD screen, capture 5.0M high-resolution photos, record 1080p videos, and perform complex geometric measurements without needing an external computer. This reduces physical strain on operators by eliminating the need to peer through eyepieces.
No. The GBS59.3520 is a complete All-in-One system equipped with a 1.8GHz Quad-Core processor, 2GB RAM, and Android 5.1. It comes pre-installed with powerful S-Eye measuring software, meaning all measurements, text annotations, and image storage can be done directly on the device’s 9.7-inch touch screen. This makes it an ideal self-contained unit for cleanrooms and busy laboratories.
Yes, the device features a dedicated HDMI output port, allowing you to mirror the 9.7-inch tablet display onto large laboratory monitors, TVs, or classroom projectors for collaborative viewing, training, and presentations.
Yes, the GBS59.3520 is designed with standard threads to attach directly to conventional trinocular microscope ports via a C-mount adapter. This transforms virtually any standard metallurgical, biological, or stereo microscope into an advanced digital measuring workstation.
Absolutely. While it features a highly responsive 9.7″ HD IPS capacitive touch screen, the unit is also equipped with USB 2.0 ports. You can plug in a standard USB mouse and keyboard for more precise point-and-click measurements and rapid data entry.
Data management is highly flexible. You can save files locally to the built-in 8GB ROM, export them seamlessly via a removable TF Card (MicroSD), transfer them over your laboratory network using WIFI/Bluetooth, or display live output externally via HDMI.
