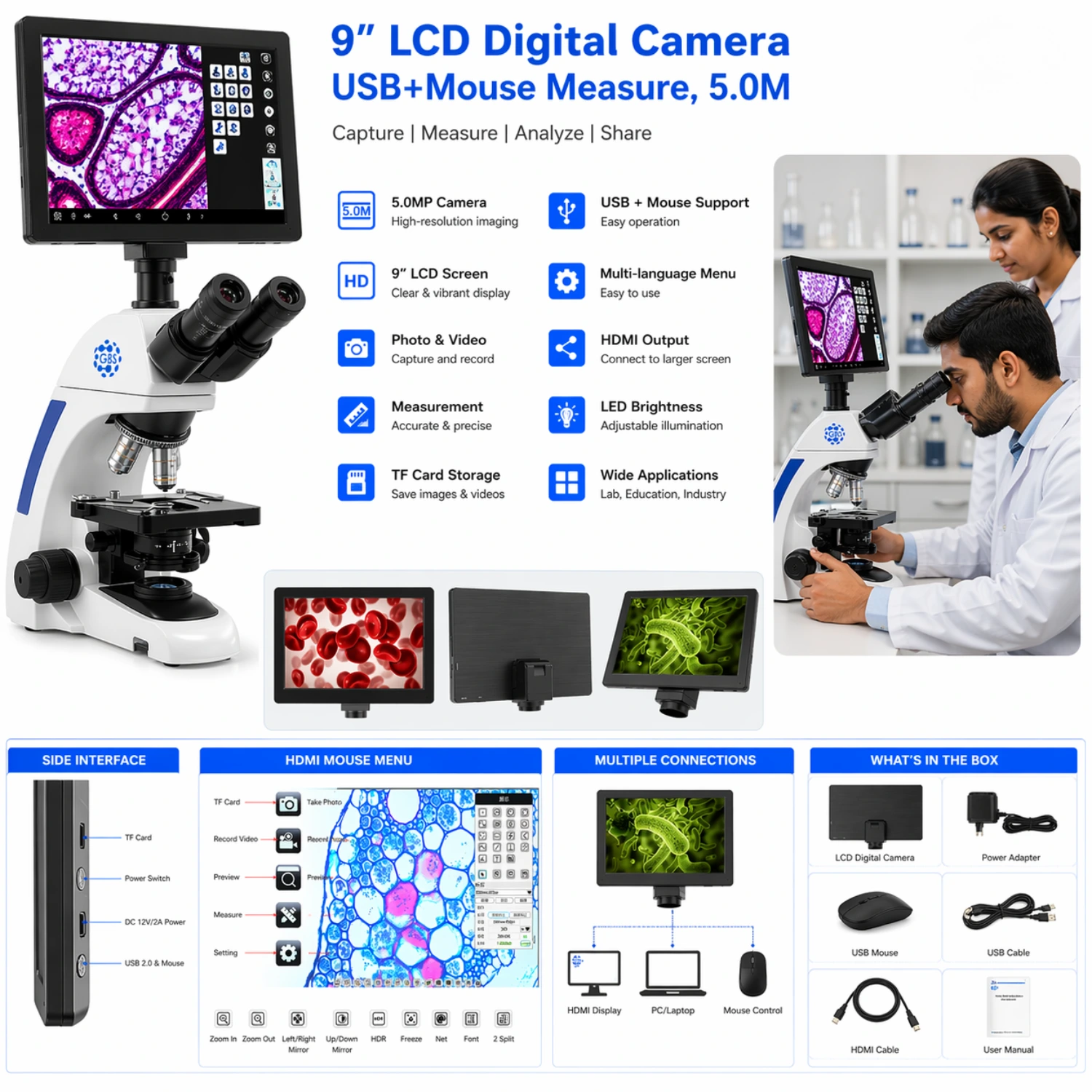

9" LCD LCD Digital Camera USB2.0 + Mouse Measure, 5.0M

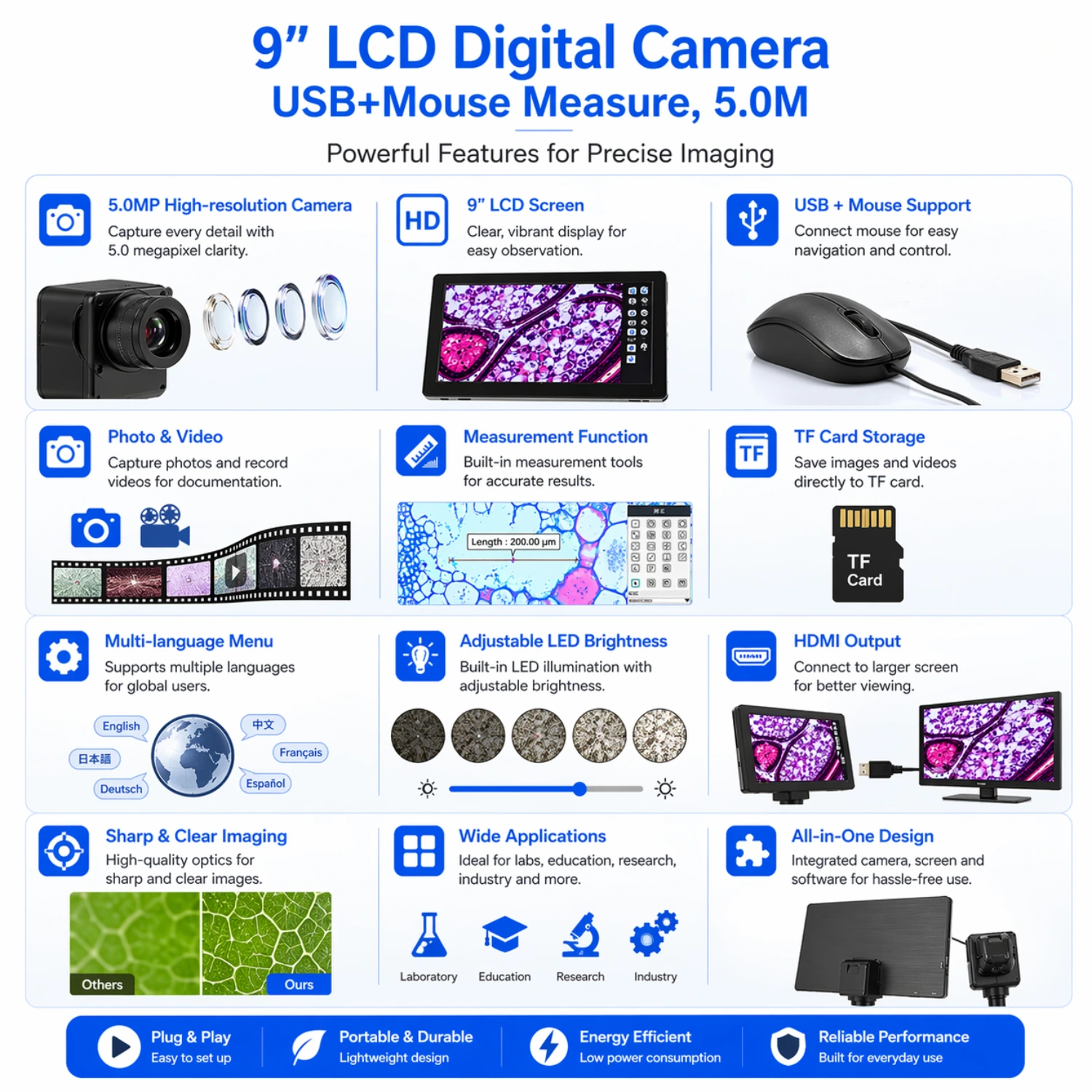

What is the GBS59.3509? The GBS59.3509 is a highly efficient 9-inch LCD Digital Microscope Camera equipped with a 5.0M 1/2.8" Sony Star Light Level CMOS sensor and a high clearance 1024x600 resolution screen.
This system features USB 2.0 real-time image output and TF Card storage, allowing for rapid documentation. Its standout feature is the intuitive USB Mouse Control Menu, which enables users to seamlessly capture photos, record videos, and perform complex on-screen measurements (over 20 graphics supported) directly on the screen without needing a separate PC.
Enhance Your Microscopic Workflow with Generative Tech
The GBS59.3509 Android Microscope Camera represents the next generation of digital microscopy. By replacing traditional eyepieces with a vibrant 9" High Clearance LCD Screen, it enables ergonomic, heads-up viewing. Built on a stable Android platform, it offers standalone operation without needing a separate PC.
Intuitive USB Mouse Control System
Simply plug the included mouse into the camera's USB Type-A port to unlock a powerful suite of tools. Access the Main Menu for capturing and recording, or the Quick Menu for digital zoom, image split, HDR, and freezing. The integrated Measurement window allows calibration and tracking of lines, areas, and cross-sections instantly.
All-in-One Hardware Integration
Combines a highly sensitive 5.0M 1/2.8" Sony Star Light CMOS camera, a fast RK3288 Quad-Core processor, and a brilliant IPS tablet into one sleek, space-saving unit.

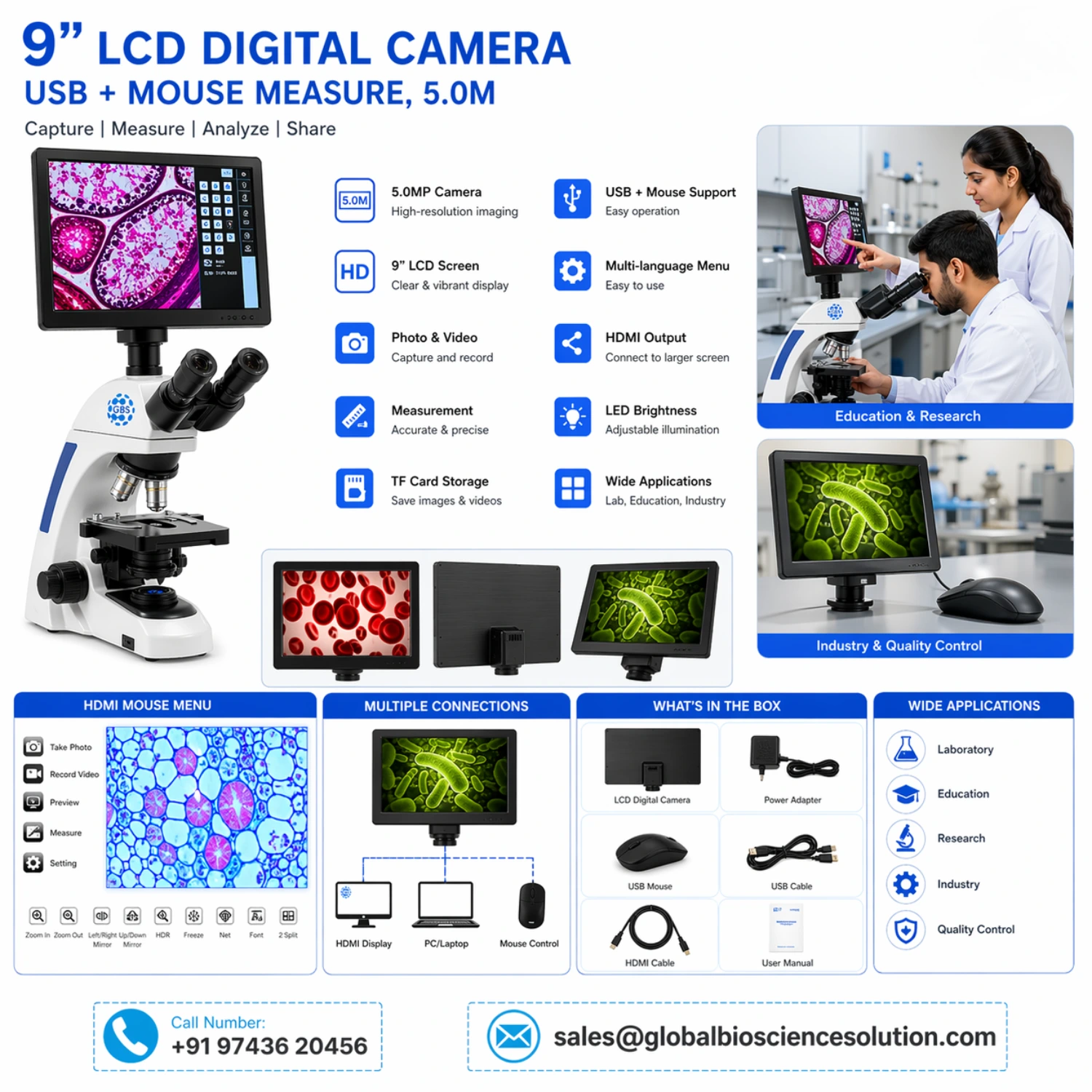

Advanced S-Eye Measuring Software
Pre-installed software allows for comprehensive geometric analysis. Perform full-range measurements including point-to-point, parallel lines, curve lengths, geometric area, and radius calculations. Operates effortlessly via touch or the included USB mouse.
Versatile Connectivity & Data Export
Export data natively via the built-in TF card slot, output uncompressed live video to larger displays using HDMI, or sync data over enterprise networks using WIFI and Bluetooth capabilities.
Industry-Specific Applications
This intelligent microscope camera is designed to meet the rigorous demands of these primary sectors:
Industrial Quality Control (QC)
Ideal for rapid PCB inspection, semiconductor wafer analysis, and microscopic defect documentation.
Educational Environments
Allows an entire classroom to view specimens simultaneously. Excellent for interactive biology and chemistry labs.
Clinical Pathology & Labs
Provides clear, color-accurate digital pathology imaging and instant reporting without neck strain.
Material Science & Metallurgy
Conduct accurate geometric measurement and metallurgical grain structure analysis directly on the screen.
Full Hardware & Software Specifications
In-depth technical breakdown of the GBS59.3509 Display System. This data is structured to provide clear answers for technical SEO queries.
| LCD Screen Panel | 9" High Clearance LCD Screen With Brightness Backlight |
| Expandable Storage | TF Card Slot (MicroSD) support |
| Physical Dimensions | 225 x 52 x 175mm (Net Weight: 0.7Kg) |
| Power Supply Requirements | DC 12V/2A Power Adaptor (AC 100~240V, 50/60Hz compatible) |
| Camera Sensor Type | 1/2.8" Sony Star Light Level CMOS Sensor |
| Maximum Resolution | 2048 x 1536 pixels @ 15 Frames Per Second (FPS) |
| Pixel Size | 2.0um x 2.0um |
| Photo Capture Format | 5.0M .JPEG format (Supports up to 12.0M interpolated output) |
| Video Capture Format | 1080p HD Video Recording |
| External Data Output | USB 2.0 Type-A, TF Card |
| Wireless Protocols | N/A |
| USB Interface Ports | USB 2.0 (PC Connection for Win 7/10 with S-Eye Software) |
| Input Control Methods | Direct USB Mouse Control |
| Localization | Built-in Mouse Control Menu |
| Image Tools | 10x Digital Zoom, 4 Split / 2 Split Windows Image Compare |
| Adjustments | Brightness, Contrast, Exposure, White Balance |
| Overlays | Cross Line With Scale (Calibrated), Net Line (8 Kinds, Width/Color Adj.) |
| Linear Measurement | Straight Line, Broken Line, Curve Length, Parallel Line Distance, Point-To-Line Distance |
| Circular Measurement | Distance Between 2 Circle Centers, Radius Fixed Circle, Two-point/Three-point Fixed Circle |
| Geometric Area Calculation | Supports over 20 kinds of measurement graphics with standard ruler calibration |
Product Manuals & Software Resources
Access comprehensive user manuals for the S-Eye software, calibration guides, and technical specification datasheets.
Frequently Asked Questions
Direct, expert answers to the most common queries surrounding Android microscope cameras and digital display systems.
An Android microscope camera, like the GBS59.3509, is used to instantly convert a traditional optical microscope into a standalone digital imaging system. It allows users to view live samples on a built-in LCD screen, capture 5.0M high-resolution photos, record 1080p videos, and perform complex geometric measurements without needing an external computer. This reduces physical strain on operators by eliminating the need to peer through eyepieces.
No. The GBS59.3509 is a complete All-in-One system equipped with a 1.8GHz Quad-Core processor, 2GB RAM, and Android 5.1. It comes pre-installed with powerful S-Eye measuring software, meaning all measurements, text annotations, and image storage can be done directly on the device's 9-inch touch screen. This makes it an ideal self-contained unit for cleanrooms and busy laboratories.
Yes, the device features a dedicated HDMI output port, allowing you to mirror the 9-inch tablet display onto large laboratory monitors, TVs, or classroom projectors for collaborative viewing, training, and presentations.
Yes, the GBS59.3509 is designed with standard threads to attach directly to conventional trinocular microscope ports via a C-mount adapter. This transforms virtually any standard metallurgical, biological, or stereo microscope into an advanced digital measuring workstation.
Absolutely. While it features a highly responsive 9" HD IPS capacitive touch screen, the unit is also equipped with USB 2.0 ports. You can plug in a standard USB mouse and keyboard for more precise point-and-click measurements and rapid data entry.
Data management is highly flexible. You can save files locally to the built-in 8GB ROM, export them seamlessly via a removable TF Card (MicroSD), transfer them over your laboratory network using WIFI/Bluetooth, or display live output externally via HDMI.
