Imaging
Digital Microscope Cameras
High-sensitivity USB 3.0 CMOS cameras optimized for clinical documentation. Upgrade to a Trinocular head required.
Enquire →GBS.12.1502-B
Binocular · Infinity Plan
Binocular
Trinocular

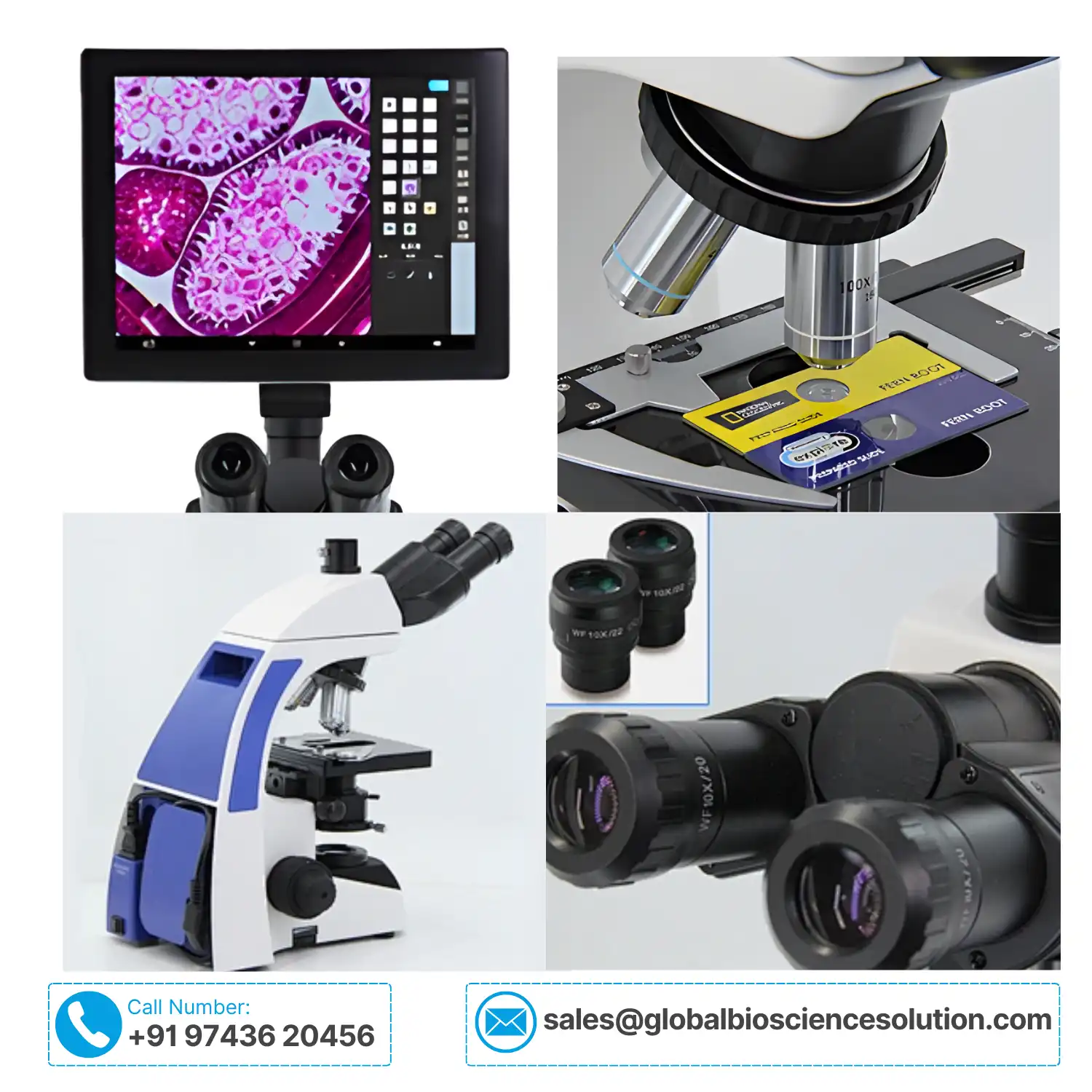

Side View

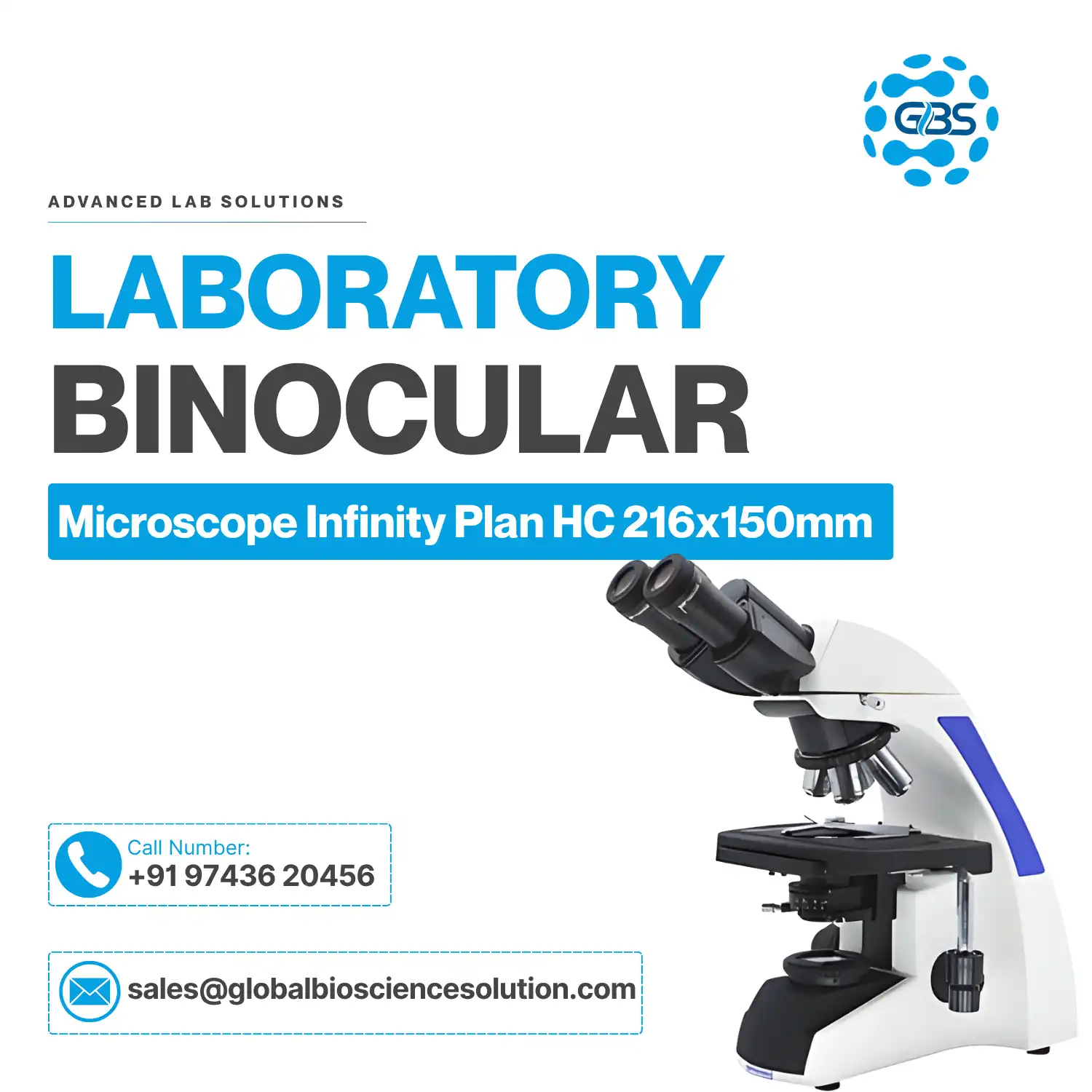

Binocular Laboratory Microscope | Infinity Plan HC 4x–100x | 216×150mm Large Stage
The GBS.12.1502-B is the best binocular laboratory microscope with infinity plan HC objectives and 216x150mm large stage. Equipped with advanced Kohler LED illumination and a wide field WF10x 22mm eyepiece, this research grade binocular microscope delivers ultra-sharp, edge-to-edge clarity, making it the premier compound microscope for microbiology zoology and botany labs in India.
Product Specifications at a Glance
Optical System
Infinity Plan HC Optics
Objectives
4x, 10x, 40x, 100x (Oil)
Head Design
Binocular (30° Inclined)
Fine Focus
0.001mm Division
Mechanical Stage
216x150mm Double Layer
Illumination Source
3W LED Kohler Illumination
Selected Configuration:
In Stock · PAN India Delivery + Installation
Product Overview
The Ultimate Clinical Laboratory Microscope
Looking to buy infinity plan HC binocular microscope online India? The GBS.12.1502-B stands out as a premium laboratory compound microscope with double layer graphite surface 216x150mm stage and fine focus 0.001mm. Designed for intensive lab use, this binocular biological microscope provides fatigue-free viewing for pathology and diagnostics.
Infinity Plan HC Objectives
Features a specialized Infinity plan HC microscope system. Our compound microscope with 4x 10x 40x 100x infinity plan HC objectives provides edge-to-edge flat, perfectly color-corrected images, eliminating optical distortion common in lower-end models.
Massive 216x150mm Mechanical Stage
This large stage compound microscope 216x150mm provides unparalleled stability. The laboratory microscope with double layer graphite surface 216x150mm stage effortlessly accommodates two slides simultaneously, with a huge 75x55mm moving range.
Wide Field Eyepiece WF10x 22mm
The laboratory microscope with WF10x 22mm wide field high eyepoint eyepiece offers a massive, highly immersive field of view. The 360 degree rotating head binocular microscope ensures ergonomic comfort for long hours of observation.
Advanced Kohler LED Illumination
This laboratory biological microscope with Kohler LED 3W illumination ensures that the specimen is illuminated evenly across the entire viewing field. Coupled with an Abbe condenser microscope NA 1.25, it delivers maximum contrast.
Core Applications
Where It Performs Best
Pathology & Diagnostics
Highly precise. Best laboratory microscope for pathology and clinical diagnostics India.
Medical Colleges
The preferred infinity plan HC binocular microscope for medical college laboratory.
Microbiology
An elite infinity plan HC microscope for microbiology and cell biology lab.
Hospitals
Trusted compound biological microscope for hospital and diagnostic center India.
Looking for a setup tutorial?
Check our downloads tab for the How to focus a binocular compound microscope with large stage tutorial and full infinity plan HC binocular microscope review video links.
Full Technical Data
Technical Specifications
Detailed optical parameters for the A12.1502-B equivalent binocular biological microscope.
Optical & Head
| Optical System | Infinity Plan Optical System |
| Viewing Head | Binocular, 30° Inclined, 360° Rotatable |
| Interpupillary | 48-75mm Adjustable |
| Eyepiece | High-point, WF10×/22mm (Extra Wide Field) |
| Nosepiece | Backward Quadruple Nosepiece |
Objectives (Infinity Plan HC)
| Objective 4x | 4× Infinite Plan HC Chromatic-free |
| Objective 10x | 10× Infinite Plan HC Chromatic-free |
| Objective 40x | 40× Infinite Plan HC Chromatic-free (Spring) |
| Objective 100x | 100× Infinite Plan HC Chromatic-free (Spring, Oil) |
Focusing & Stage
| Focusing | Coaxial Coarse and Fine Adjustment |
| Fine Division | 0.001mm (Ultra Precision) |
| Coarse Stroke | 37.7mm/Rotation, Moving Range 24mm |
| Safety features | Safety Stop Screw, Tension Adjustable |
| Mechanical Stage | 216x150mm Double Layer Stage (Graphite) |
| Moving Range | 75mm x 55mm |
Condenser & Illumination
| Condenser | Abbe Condenser NA1.25 |
| Diaphragm | Iris Diaphragm, Center Adjustable |
| Illumination | 3W LED Kohler Illumination |
| Adjustability | Brightness Adjustable |
| Filter | Blue Filter included |
Model Variants — Side by Side
The GBS.12.1502 series offers modular capabilities depending on your research needs. We are an affordable research grade infinity plan HC binocular microscope supplier in India.
| Feature | GBS.12.1502-B Current Selection |
GBS.12.1502-AT |
|---|---|---|
| Head Type | Binocular, 30° Inclined | Trinocular, 30° Inclined |
| Optical System | Infinity Plan System | HC Achromatic System |
| Objectives | Infinite Plan HC (4x,10x,40x,100x) | HC Chromatic-free (4x,10x,40x,100x) |
| Eyepiece | WF10x/22mm | WF10x/20mm |
| Mechanical Stage | 216x150mm (Range 75x55mm, Graphite) | 143x132mm (Range 75x50mm) |
| Illumination | 3W LED Kohler | 3W LED External |
| Camera Port | ✕ No | ✓ Yes (C-Mount 0.5x) |
| Best For | Ergonomic long-term clinical viewing | Digital documentation & lab work |
Downloads & Media
Brochures & Setup Guides
Download the specification sheets or view the Kohler illumination microscope setup guide for your laboratory.
Need a video walkthrough? Search YouTube for our official Binocular microscope large stage 216x150mm demo.
Expert Guidance
Frequently Asked Questions
Common queries regarding our laboratory biological microscopes.
An infinity plan HC microscope utilizes an optical system where light rays emerge from the objective in parallel. The ‘Plan HC’ (High Contrast) objectives eliminate both spherical and chromatic aberrations, resulting in a completely flat, perfectly focused image from edge to edge.
This model features a massive 216x150mm large mechanical stage with a double layer graphite surface, allowing for a generous 75x55mm moving range, easily accommodating two slides at once.
Kohler illumination is an advanced lighting technique that provides incredibly even, glare-free lighting across the entire specimen field. It maximizes contrast and resolution, crucial for high-magnification research grade compound microscopes.
The binocular compound microscope features highly precise coaxial coarse and fine focusing with an ultra-fine 0.001mm division for pinpoint accuracy at 1000x magnification.
