Binocular Zoom Stereo Microscope with LED Illumination | 1:8.1 High Zoom Ratio

Reflected (top) LED illumination shines down onto the specimen, making it ideal for inspecting opaque objects like PCBs, coins, or metal parts. Transmitted (bottom) LED illumination shines up through the glass stage, essential for viewing translucent items like biological dissections, gems, or films.

This feature provides two independent 3W LED light sources. One is built into the base (up-light/transmitted) and the other is mounted near the objective (down-light/reflected). Both have variable intensity controls to perfectly expose your sample.

Having built-in dual LED lighting means you do not need to buy external ring lights or fiber optic lamps. It makes the microscope a fully self-contained unit capable of handling both opaque and transparent samples right out of the box.

A track stand uses a geared vertical column rather than a smooth pole. This allows you to raise and lower the entire microscope head with extreme precision using the focus knobs, ensuring perfect stability even at 53x total magnification.

Working distance is the vertical space between the bottom of the objective lens and the top of the focused specimen. This model features a 108mm working distance, providing ample room for tools, soldering irons, and tweezers beneath the LED light.

WF stands for Wide Field. 10x is the magnification, and 24mm is the Field of View (FOV). A 24mm FOV is exceptionally large, allowing you to see a much wider area of your PCB or biological sample at once.

Out of the box, with WF10x eyepieces, it is 6.5x to 53x. However, by combining a 2.0x auxiliary lens and 20x eyepieces, the zoom stereo microscope with total magnification up to 212x with optional lens becomes possible.

The Greenough optical system uses two completely separate optical paths set at an angle to mimic human binocular vision. This results in excellent 3D perception and a very large depth of field without dizziness or image tilting.

You can screw on optional auxiliary lenses to the bottom of the pod. Common sizes are 0.5x (doubles your working distance but halves magnification) and 2.0x (halves working distance but doubles magnification).

The zoom stereo microscope body 76mm means the microscope head fits into any standard 76mm O-ring. This makes it compatible with almost all third-party articulating arms, boom stands, and track stands.

A standard 1:6.5 ratio usually offers 7x to 45x magnification. The 1:8.1 ratio is an upgraded optic that allows a wider sweep, giving you 6.5x at the low end (for seeing the whole object) up to 53x at the high end for fine details.

The binocular stereo zoom microscope with LED price India varies based on the specific stand and accessories. Please contact our sales team for an exact quote on the GBS.23.2605-BL.

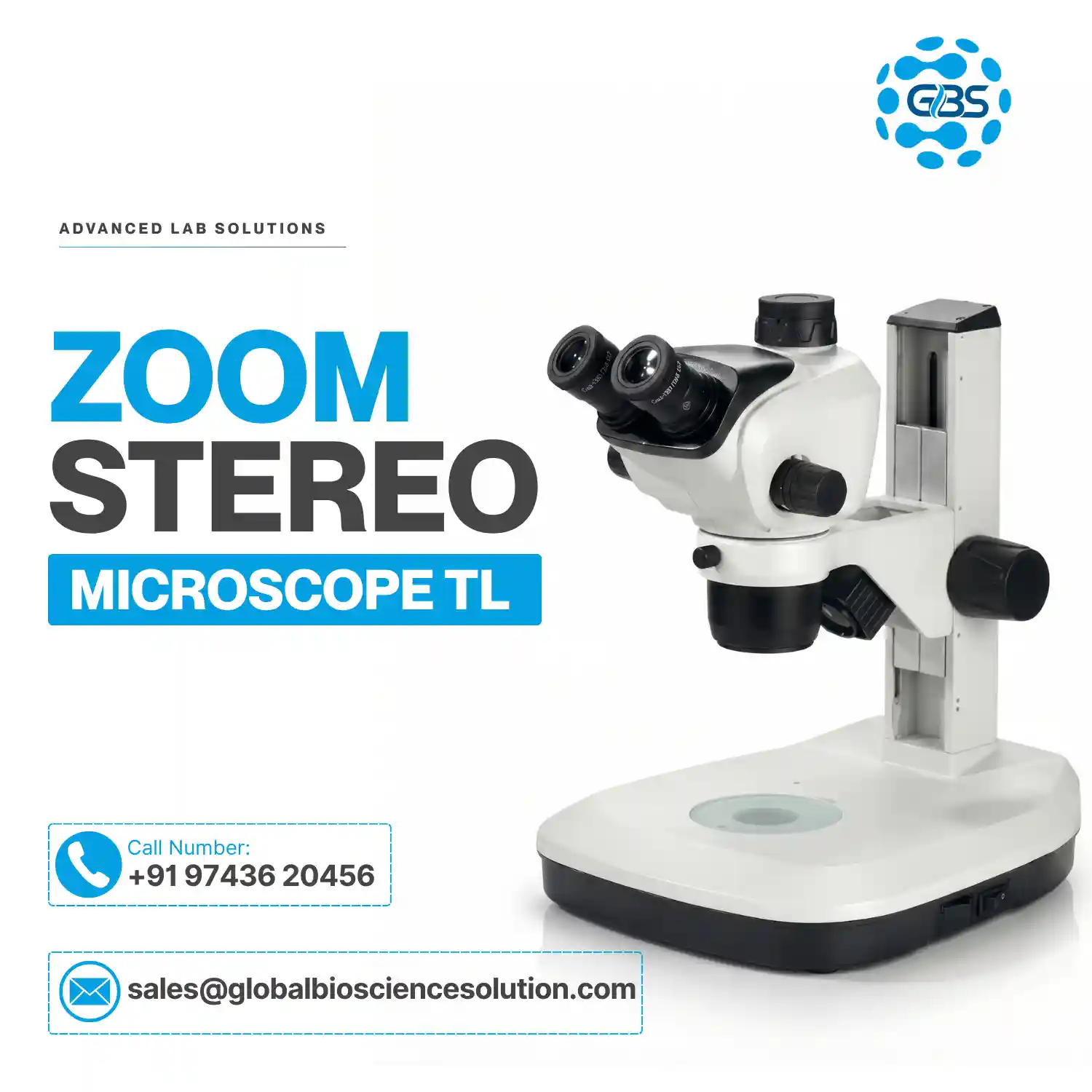

No, the optical heads are sealed at the factory. If you plan to use a digital camera for recording PCB soldering or dissection videos, you should purchase the Trinocular LED (GBS.23.2605-TL) model from the start.

These are heavily used in electronics manufacturing for PCB inspection, jewelry making, gemstone grading, watch repair, biological dissections, and forensic analysis.

Yes! This zoom stereo microscope outdoor power bank compatible model features a safety low voltage power supply that supports USB power bank input. This is perfect for field research, entomology, and remote labs.

Microscopes without a light source (like our Pole Stand models) require you to purchase and attach third-party ring lights or fiber optic lamps. A model with an integrated light source (like this BL model) is a complete, ready-to-use system.
